Wilwood 11.75" Front Disc Brake Kit (Stage 2 Plus)

$860.00

Please, select one

Select the previous option first

Select the previous option first

Drilled/slotted/plated rotors may be drop-shipped from the suppler and may require an additional week

Select the previous option first

'72 and older A-Bodies with stock upper control arms require upper ball joint tapered adapters. You must also install '73-'76 A-Body lower ball joints.

Select the previous option first

Select the previous option first

In stock
+ −
Add to wish list

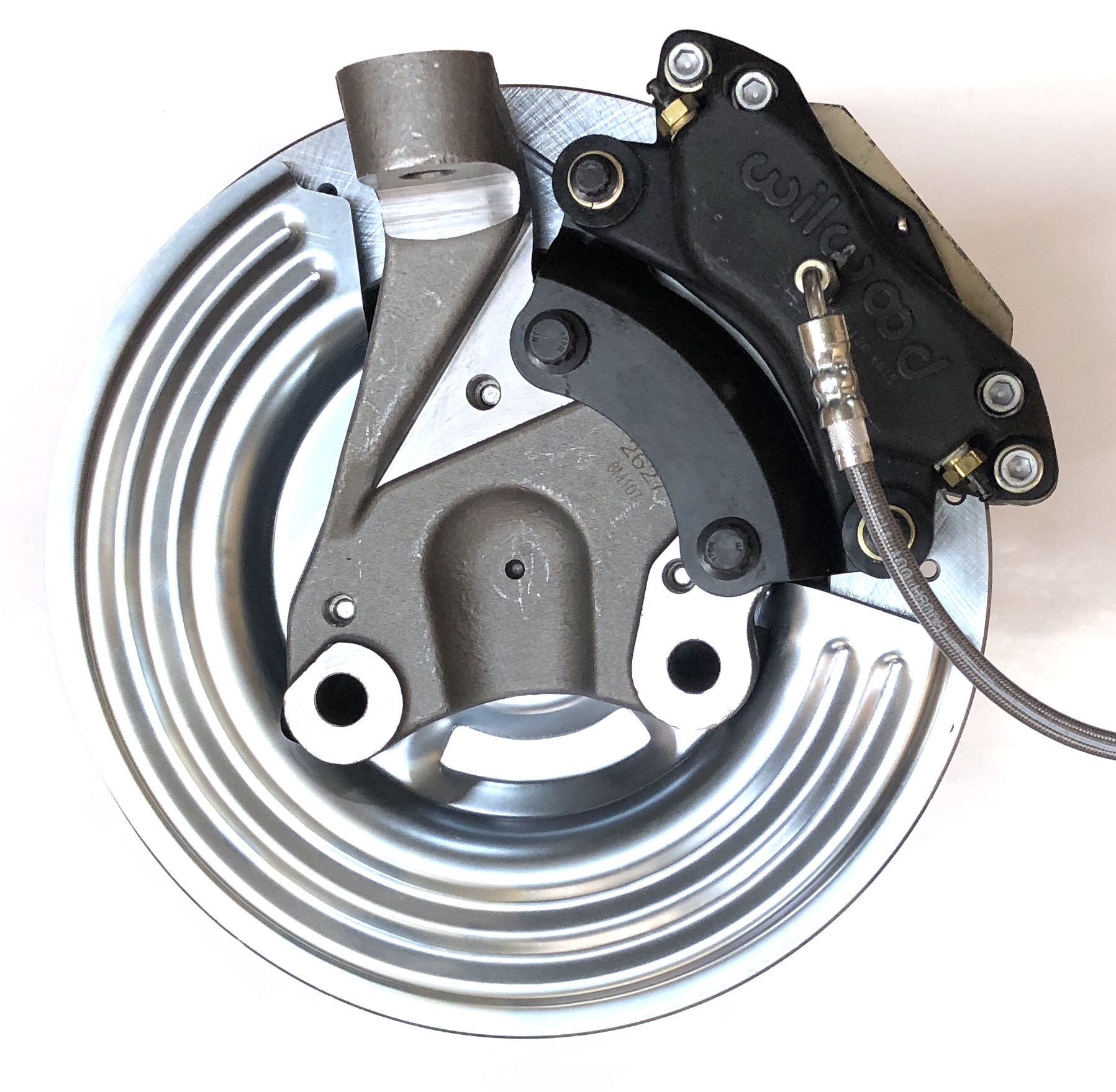

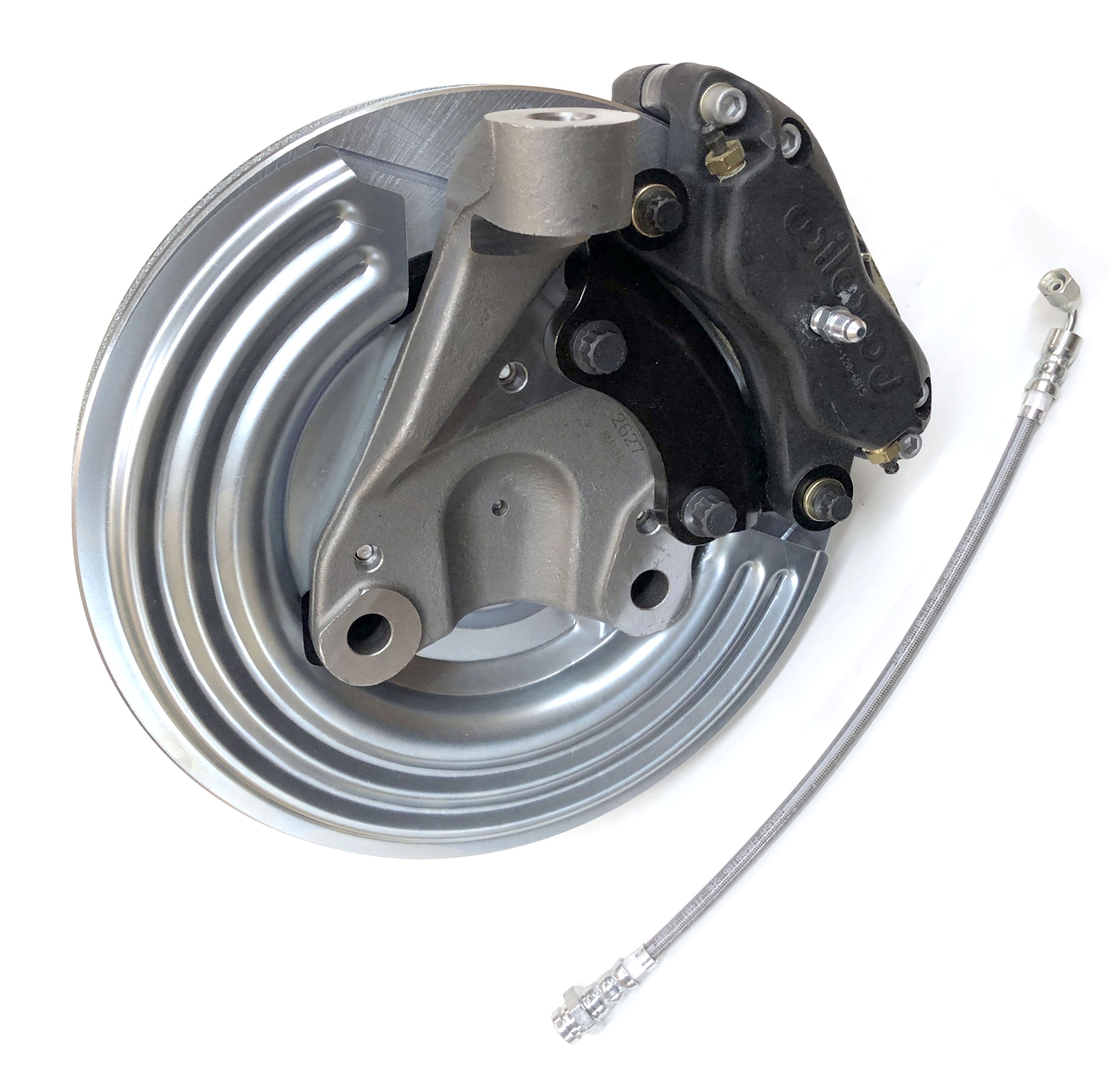

Wilwood on 11.75" front disc brake kit includes all new hardware. The package fits '62-'72 B-bodies, '67-'76 A-bodies and '70-'74 E-bodies. This is the largest brake package that fits 15" wheels.

Included in kit:

  • Wilwood 120-13845 (1.75" bore) 4-piston black or red, power-coated calipers with brake pads
  • Billet steel 11.75" caliper brackets
  • Reproduction Forged Steel Knuckles
  • 11.75" rotors
  • DOT Stainless flex hoses
  • Timken Set 17 (A17/BR17) inner bearings
  • Timken Set 2 (A2/BR2) outer bearings
  • Grease Caps
  • Splash Shields
  • Hardware

EXPLODED VIEW: Mopar A/B/E body front disc brake assembly. See below:

Exploded view
